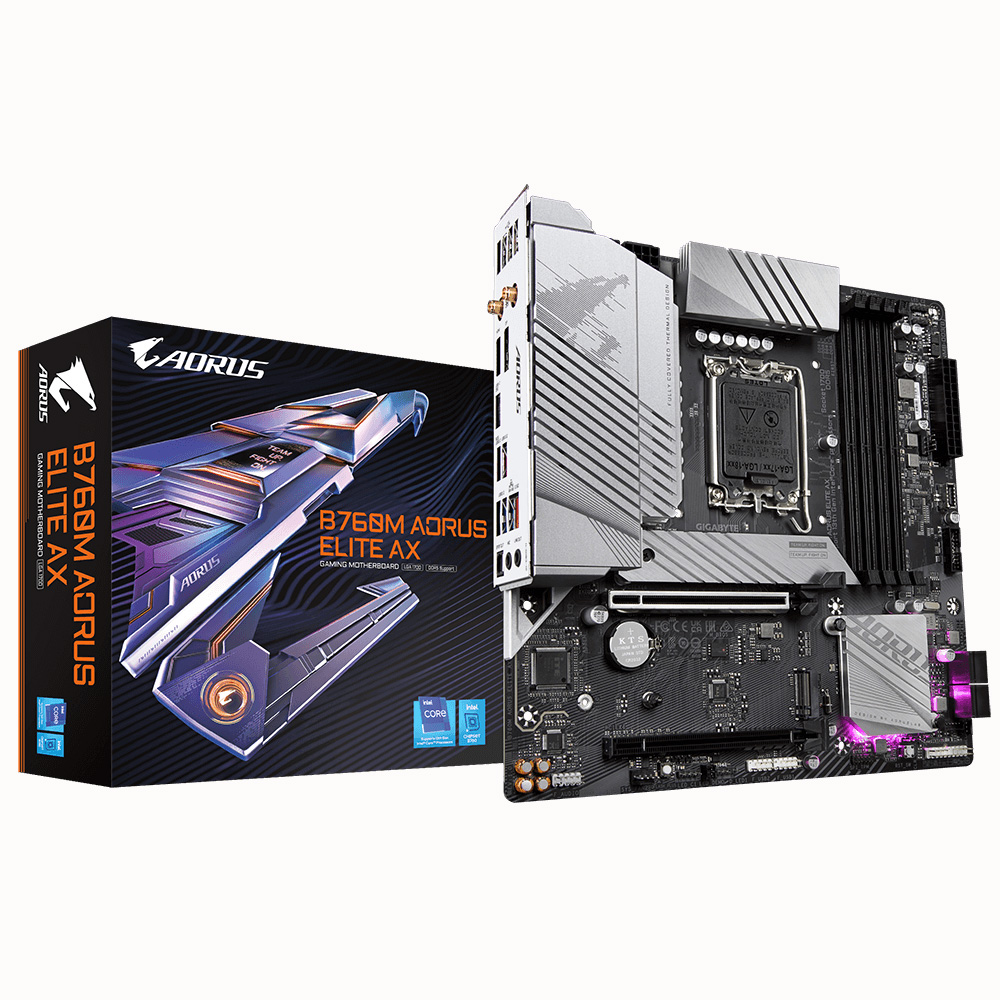

MAINBOARD GIGABYTE B760M AORUS ELITE AX
3.950.000 ₫
– Supports Intel® Core™ 14th/ 13th /12th processors
– Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution
– Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
– Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
– Fast Networks： 2.5GbE LAN & Wi-Fi 6E 802.11ax
– Extended Connectivity：Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s, DP, HDMI
– Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
– Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
– Xuất xứ: Trung Quốc
Bo mạch chủ GIGABYTE B760M AORUS ELITE AX (DDR5)
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Express Chipset |
| Bộ nhớ | – Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules – 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture – Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) – Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules – Support for Extreme Memory Profile (XMP) memory modules |
| Card đồ họa tích hợp | – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Âm thanh | – Realtek® Audio CODEC – High Definition Audio – 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. – Support for S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel® Wi-Fi 6E AX211 (For PCB rev. 1.0) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.1) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard |
| Khe cắm mở rộng | CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Support for AMD CrossFireX™ technology |
| Giao diện lưu trữ | CPU: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset: – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support – 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 1 x USB 3.2 Gen 1 port on the back panel – 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel |
| Kết nối I/O bên trong | – 1 x 24-pin ATX main power connector – 1 x 8-pin ATX 12V power connector – 1 x 4-pin ATX 12V power connector – 1 x CPU fan header – 3 x system fan headers – 2 x addressable LED strip headers – 2 x RGB LED strip headers – 2 x M.2 Socket 3 connectors – 4 x SATA 6Gb/s connectors – 1 x front panel header – 1 x front panel audio header – 1 x USB Type-C® header, with USB 3.2 Gen 2 support – 1 x USB 3.2 Gen 1 header – 2 x USB 2.0/1.1 headers – 2 x Thunderbolt™ add-in card connectors – 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) – 1 x Q-Flash Plus button – 1 x reset button – 1 x reset jumper – 1 x Clear CMOS jumper |
| Kết nối phía sau | – 2 x SMA antenna connectors (2T2R) – 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support – 1 x USB 3.2 Gen 2 Type-A port (red) – 3 x USB 3.2 Gen 1 ports – 4 x USB 2.0/1.1 ports – 1 x HDMI port – 1 x DisplayPort – 1 x RJ-45 port – 1 x optical S/PDIF Out connector – 2 x audio jacks |
| Điều khiển I/O | iTE® I/O Controller Chip |
| BIOS | – 1 x 256 Mbit flash – Use of licensed AMI UEFI BIOS – PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Thời gian bảo hành | 36 tháng |
