Sale!

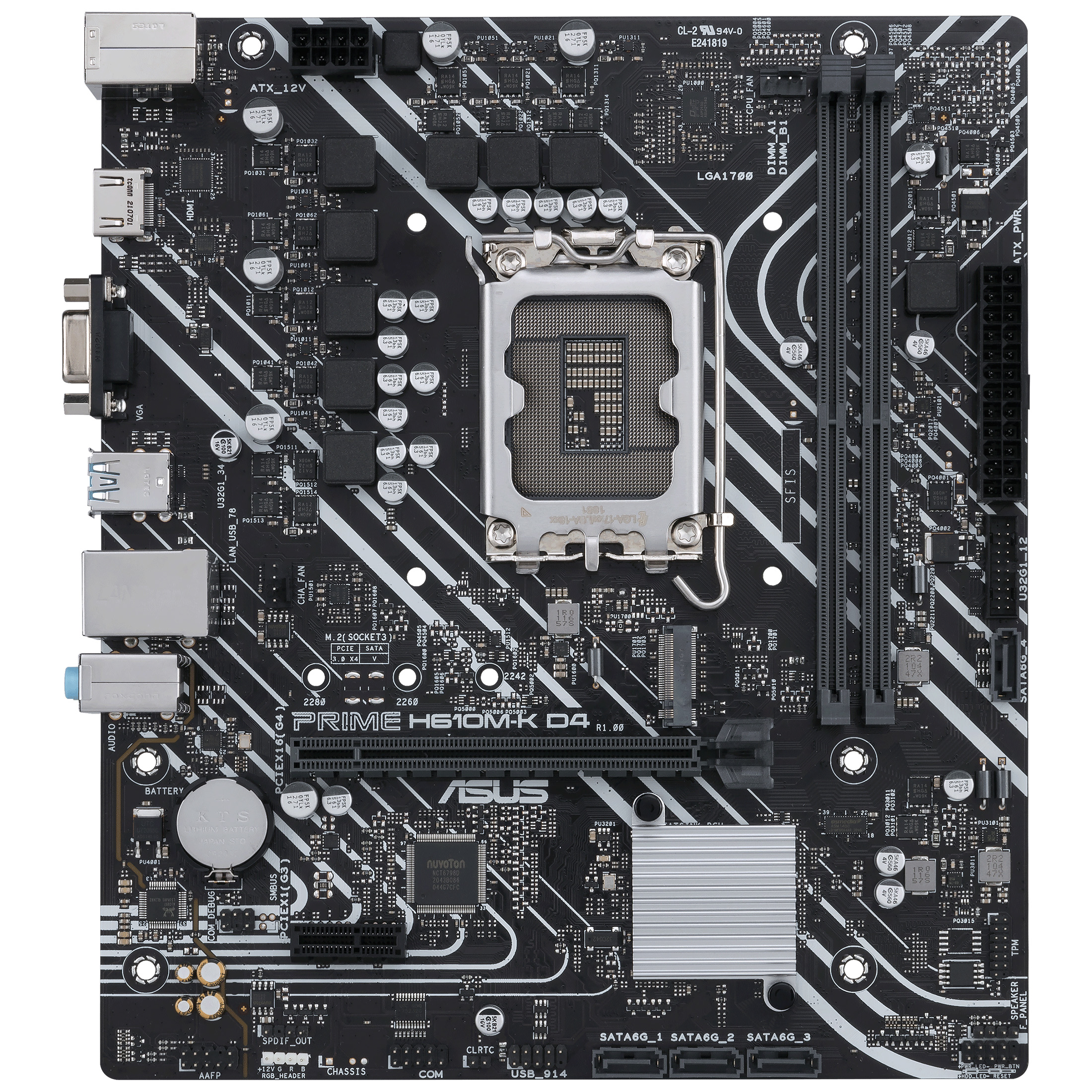

MAINBOARD ASUS H610M-K D4 (DDR4)
Original price was: 1.800.000 ₫.1.550.000 ₫Current price is: 1.550.000 ₫.
– Bo mạch chủ Intel® H610 (LGA 1700)
– Socket Intel® LGA 1700: sẵn sàng cho bộ xử lý Intel® thế hệ 14, 13 và 12
– Kết nối cực nhanh: Khe M.2 32Gbps, Ethernet Realtek 1 Gb và hỗ trợ USB 3.2 Gen 1
– Xuất xứ: Trung Quốc
Bo mạch chủ H610M-K D4
| Model | ASUS-H610M-K D4 |
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* |
| Bộ chip | Intel® H610 Chipset |
| Bộ nhớ | 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Đồ họa | 1 x D-Sub port 1 x HDMI® por |
| Khe cắm mở rộng | Intel® Core™ Processors (14th & 13th & 12th Gen)* 1 x PCIe 4.0 x16 slot Intel® H610 Chipset 1 x PCIe 3.0 x1 slot |
| Lưu trữ | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used. |
| Ethernet | 1xRealtek 1Gbps |
| USB | Rear USB (Total 6 ports) – 2 x USB 3.2 Gen 1 ports (2 x Type-A) – 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) – 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports – 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Âm thanh | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Cổng I/O mặt sau | 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI® port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Đầu nối I/O nội bộ | Fan and Cooling related – 1 x 4-pin CPU Fan header – 1 x 4-pin Chassis Fan header Power related – 1 x 24-pin Main Power connector – 1 x 8-pin +12V Power connector Storage related – 1 x M.2 slot (Key M) – 4 x SATA 6Gb/s ports USB – 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports – 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous – 1 x RGB header – 1 x Clear CMOS header – 1 x COM Port header – 1 x Front Panel Audio header (AAFP) – 1 x S/PDIF Out header – 1 x Speaker header – 1 x SPI TPM header (14-1pin) – 1 x 10-1 pin System Panel header |
| Thời gian bảo hành | 36 tháng |
